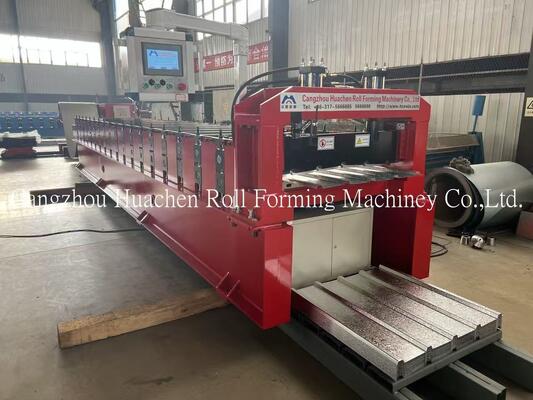

Speed 10 - 15m / min Roofing Sheet Roll Forming Machine For Construction Material
We produce kinds of Roll Forming Machine for construction materails like C/Z purlin, roof/wall panel, metal deck, stud & track, shutter door, PU panel, etc.
We have advanced production equipment, an energetic and professional team which has rich experience of designing, developing, and manufacturing machineries. We keep up with the developing trend of cold roll industry and develop new technologies in the manufacturing of our machinery. Our products are featured of high efficiency, high flexibility and low production cost.
The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.
This type of roof panel forming machine features high speed, high production, good performance, low labor and is economical. It is the best choice for producing metal sheet cold roll form products.
Roof and wall forming machine can produce beautiful apprearance and strong panels which are extensively used in wall&roof construction or outdoor decoration.
Introduction and Guarantee :
1. This machine contains our experiences in 30 years and many times improvements by our engineers.
2. In our service, we support the equipments and profiles that customers really need and including our most sincere recommends.
3. Our roll forming machines are driven by chain in hydraulic system. Chain Drive System can save the power compare with other system. That also means that customers do not need to pay the extra power fee during production of steel panel.
Applications:
| Construction |
Food Services |
Lawn & Garden |
Shelving |
| Automotive |
Fencing |
Lighting |
Store Fixture |
| Display Industry |
Furniture |
Material Handling |
Sporting Goods |
| Farming |
HVAC |
Mining |
Transportation.etc |
Specifications:
| Suitable to process |
colored steel plate, galvanized board |
| Width of the plate |
1250mm |
| Rollers |
23 groups |
| Rolling material |
Forging steel 45# |
| Rolling galvanization thickness |
003-0.8mm |
| Material of the cutting blade |
Cr12mov |
| Dimensions |
Approx9m*1.8m*1.5m |
| Power |
5.5kw |
| Thickness of the plate |
0.3-0.8mm |
| productivity |
10m-15m/min |
| Diameter of the roller |
76mm |
| Weight |
About 7T |
| Voltage |
380V 50Hz |
| Processing precision |
Within 1.00mm |
| Equipment components |
Man-made uncoiler, roll forming machine,
Comuter control system
Hydraulic control system
Press forming cutting |
| Transportation |
One complete equipment need one 40 feet container to hold |
Advantage:
1. We use Automatic control software to manage productive information.
2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. First in quality
5. First in time
6. First in price
7. First in services
