Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam
Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam
Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

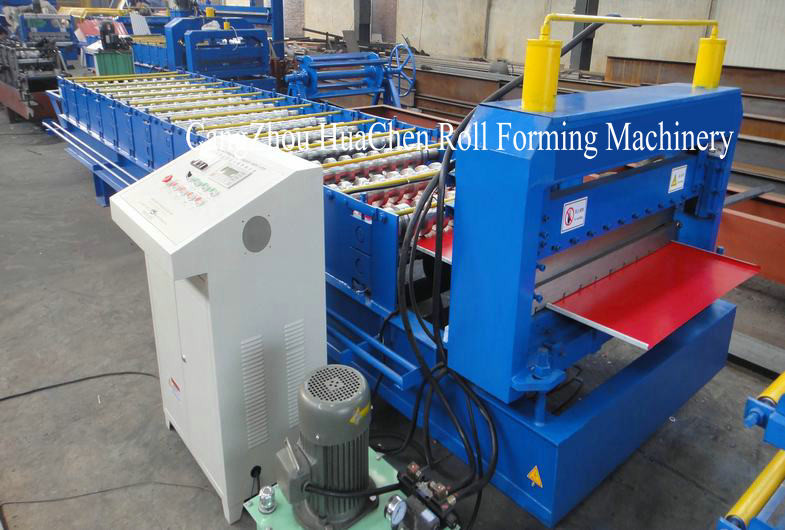

Büyük resim :  Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Sertifika: ISO
Model numarası: HC100
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 9000-29000USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

Açıklama
Marka adı: HC type: Roofing Sheet Roll Forming Machine
rollers: 15 roller material: No.45 steel
warranty: 12 month payment term: T/T
Vurgulamak:

cold roll forming machine

,

roof panel roll forming machine

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam



1.Smmary:



Uncoiler Manual Type
Weight of Coil 5-8T
Suitable Coil Thickness 0.4-1.2mm(Aluminum), 0.3-0.6mm(GGPI)
Suitable Coil Width 300-1220mm
Roll Stations 18 stations
Forming Speed 14m/min
Dia. of Shafts 76mm
Main Power 5.5KW
Hydraulic Power 3KW
Material of Shaft 45# Steel



2. Specification:



1. Uncoiler

  • Manual Type
  • Weight of Coil: 5-8T
  • Inner Dia.: 508-610mm
  • Outer Dia.: 1200-1500mm
  • Material Width: 300-1220mm

2. Hydraulic Cutting

  • Raw Material: Galvanized Steel Coils
  • Suitable Coil Thickness:0.4-1.2mm(Aluminum), 0.3-0.6mm(GGPI)
  • Suitable Coil Width: 300-1220mm
  • Material of Cutting Blade: Cr12MoV
  • Hardness of Shearing Blade: HRC58–60
  • Hydraulic Power: 3KW
  • PLC Control Box: 700mmx1000mmx300mm
  • Touch Screen,Frequency Converter and Encoder are all Panasonic brand from Japan

3. Roll Forming Machine

  • Roll Stations: 18 stations
  • Forming Speed: 14m/min
  • Material of Roller: High-grade 45# steel coated with hard chrome 0.05mm thickness
  • Dia. of Shafts: 76mm
  • Material of Shaft: 45# Steel
  • Material of Roller:45#steel coated with hard chrome 0.05mm
  • Material of Siding Plate:A3 steel -welded structure
  • Transmission: 1.5' Chains
  • Adjustable Siding Plate: 18mm thickness, with 2 separate siding plates adjustable by electrical control after precision processing. The siding plates can be adjusted according to customers’ requirements on the width of the profiles.
  • Material of Main body construction: 45# “H” Profile Steel
  • Transmission Type: 1.0' 16A Chains
  • Material of Chains: 45#steel with heat treatment HRC45-50°
  • Tolerance of Length: ±2mm
  • Main Power: 5.5KW

 Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam 0Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam 1Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam 2
