Ürün ayrıntıları:
|
| Material: | PPGi GI | capacity: | 20m/min |
|---|---|---|---|
| machine weight: | 4.5T | rollers: | 45# steel |

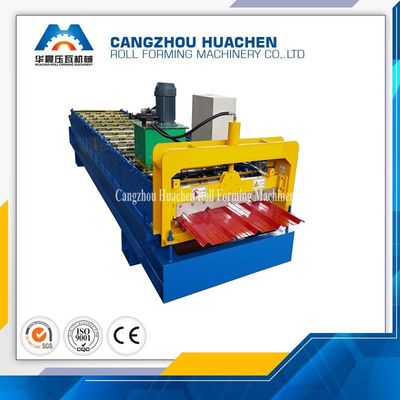

| Type: | 0.15mm-0.4mm Galvanized Steel Automatic Roof Roll Forming Machine / Roof Sheet Roll Forming Machine | cutting blade: | Cr12 |
| Vurgulamak: | roof tile roll forming machine,roof panel roll forming machine |
||
Color steel roll panel is the color coating steel plate and the roller of cold bending into various wave types of pressure plate. It is used in industrial and civil building, warehouse, construction, large span steel structure housing roof, walls, and internal and external wall decoration, is a lightweight, high strength, color rich affluence, convenient and quick construction, earthquake, fire, rain, long service life, maintenance free characteristics, has been widely applied
|
roofing sheet bending roll forming machine
|
|||
|
Working process: decoiler-feeding-roll forming-cutting-end product
|
|||
|
power
|
7.5KW+4KW
|
Roller material
|
45# steel with chrome
|
|
Station
|
About 18 stations
|
Drive
|
By chain
|
|
shaft
|
70mm solid
|
Size of line
|
About 8.5mx1.5x1.2m
|
|
Decoiler
|
Manual or hydraulic
|
Container
|
1X40GP
|
Production Process flow chart
Action: main driving motor drive forming machine to go forward, rewind and stop
Process:
De-coiler---guiding-----------roll forming-----------cutting
Design
This machine will be designed as per customer’s drawings.
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: About 40 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 12 mounts,all of the technical personnel are ready to serve you at any time.
